LED Underwater lamp-9W-CG-SSD-C009

Model：CG-SSD-C009

Power：9W

Size：Ф150mm

Projection distance：3M

Luminous color：Red. Green. Blue. Yellow. Warm white. White, cold white. Colorful

Lamp color：Silvery white

Shell work：304 stainless steel

Light chip：Imported high-quality high-power lamp bead

Product characteristics：The lamp body is made of high quality aluminum alloy manufacture, the cooling efficiency is high; and the use of design of strong air convection, ensuring the cooling effect; the lamp body adopts the combination of precision abrasive casting close, effectively prevent impurities intrusion; the power supply adopts intelligent control chip, to achieve the voltage and current stabilizing effect, ensure the endurance life of lamps and lanterns, is the first choice for a new era of new environment-friendly energy-saving light source!

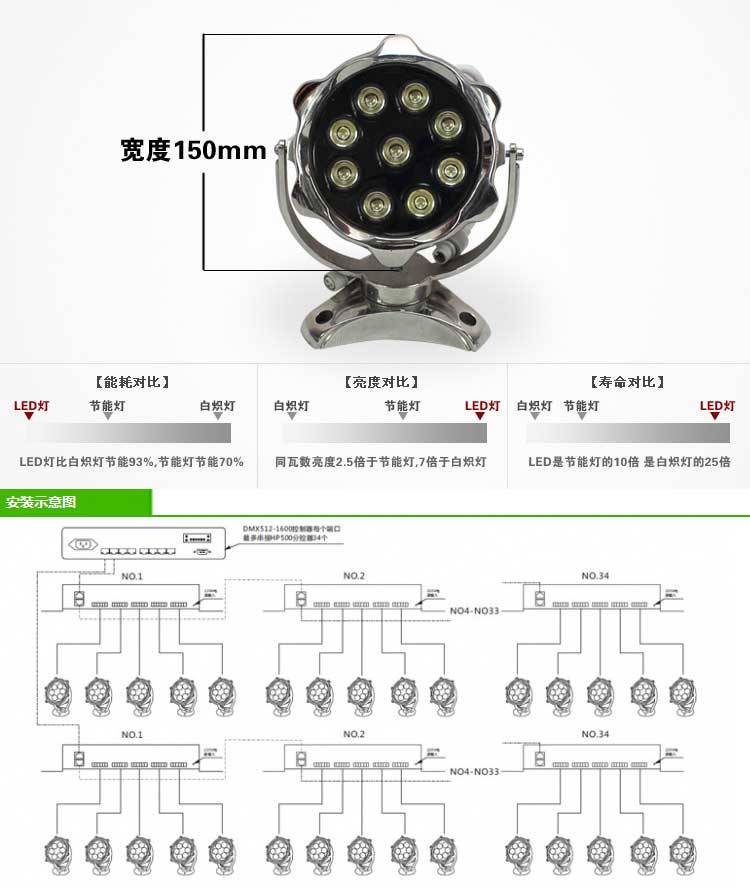

Dimension sketch map

Parameter description

產品型號 Product Model	CG-SSD-C009
輸入電源 Input Voltage	AC24V
電源頻率 Freqency Range	50HZ-60HZ
功率因數 Power Factor	＞8.8
LED驅動方式 LED Driving Mode	內置防水電源
LED壽命 LED Life	50000H
LED顏色 LED Color	紅,綠,藍,黃,曖白,白光,冷白,七彩
LED數量 LED Quantity	9pcs
配光方式 Light Design	LED+透鏡（Lens)
光束角 Beam Angle	15°45° 60°120°可選
LED功率 LED Power	9W
LED結點溫升 LED Node Temperature	＜65°C
工作溫度 Working Temperature	-40°C- +55°C
防護等級 IP Grade	IP68
外殼材質 Shell Material	鋼化玻璃、304不銹鋼
電源連接線 Power Cables	棕Brown 藍Blue 地線GND
燈具尺寸 SIZE	Ф150mm
燈具照度 LM	880LM
產品認證 Product Certification	CE

product details

產品使用場合:
適用于用在各種需要光照的水底環境,比如說各種噴水池,人工瀑布,游泳池,養魚池等等
產品特點:
外殼采用優質304不銹鋼壓鑄而成，防銹效果顯著，散熱性能優越，并且采用高密度的
模具制作,產品密封性能高,保證長時間使用而不進水,光源采用超高亮度的燈珠制作,
亮度極高,并且使用更穩定,內置恒流驅動電源，確保燈具性能穩定。
