urrent location：Home > product details

LED Cast light 108W-CG-TG-A108

Model：CG-TG-A108

Power：108W

Size：200*200*220

Projection distance：8-15M

Luminous color：Red, green, blue, yellow, warm white, white, cold white, colorful

Lamp color：black

Shell work：Aluminum alloy

Light chip：Imported high-quality high-power lamp bead

Product characteristics：The lamp body is made of high quality aluminum alloy manufacture, the cooling efficiency is high; and the use of design of strong air convection, ensuring the cooling effect; the lamp body adopts the combination of precision abrasive casting close, effectively prevent impurities intrusion; the power supply adopts intelligent control chip, to achieve the voltage and current stabilizing effect, ensure the endurance life of lamps and lanterns, is the first choice for a new era of new environment-friendly energy-saving light source!

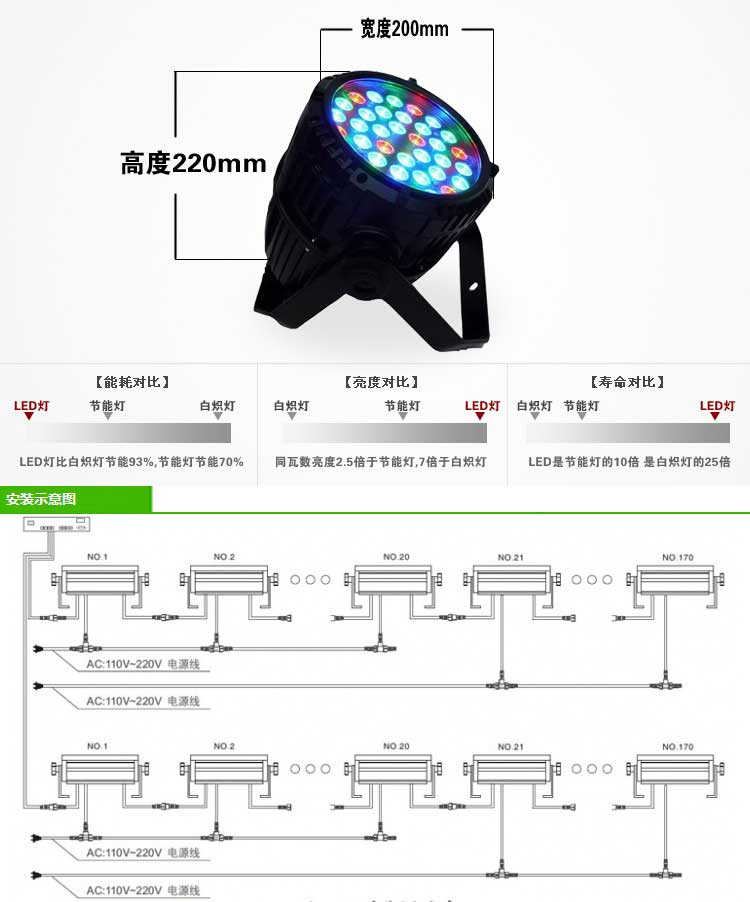

Dimension sketch map

Parameter description

產品型號 Product Model	CG-TG-A108
輸入電源 Input Voltage	AC85-265V
電源頻率 Freqency Range	50HZ-60HZ
功率因數 Power Factor	＞8.8
LED驅動方式 LED Driving Mode	恒流7000mA
LED壽命 LED Life	50000H
LED顏色 LED Color	白光5500K-6000K
LED數量 LED Quantity	36pcsX3W
配光方式 Light Design	LED+反光罩（Lens)
光束角 Beam Angle	65°120°可選
LED功率 LED Power	108W
LED結點溫升 LED Node Temperature	＜65°C
工作溫度 Working Temperature	-40°C- +55°C
防護等級 IP Grade	IP66
外殼材質 Shell Material	鋼化玻璃、散熱鋁
電源連接線 Power Cables	棕Brown 藍Blue 地線GND
燈具尺寸 SIZE	200200220
燈具照度 LM	5400LM
產品認證 Product Certification	CE

product details

產品使用場合:
適用于戶外的景觀照明,比如說公園,綠化帶,廣場等公開場所的高強度照明區域
產品特點:
LED大功率投光燈是以大功率LED作為發光源的一種節能的投光燈。
LED大功率投光燈能產生多種色彩，所產生的色彩追逐效果
運用于建筑物和裝飾，燈體是用鋁合金做成，完全密封可靠，
防水等級達到IP65，可調節投光角度，達到最滿意的照明效果。
LED大功率投光燈可用遙控或DMX控制，按鈕開關，通過使用DMX通道可達到
色彩追逐效果，且場景也可由燈光設計師進行調控。
如果你不愿使用DMX控制器，可使用內控編程控制器，這樣在安裝使用時更方便。
