中山市彩光照明科技有限公司
|
產(chǎn)品型號 Product Model |
CG-SSD-C009 |
|
輸入電源 Input Voltage |
AC24V |
|
電源頻率 Freqency Range |
50HZ-60HZ |
|
功率因數(shù) Power Factor |
＞8.8 |
|
LED驅動方式 LED Driving Mode |
內置防水電源 |
|
LED壽命 LED Life |
50000H |
|
LED顏色 LED Color |
紅,綠,藍,黃,曖白,白光,冷白,七彩 |
|
LED數(shù)量 LED Quantity |
9pcs |
|
配光方式 Light Design |
LED+透鏡（Lens) |
|
光束角 Beam Angle |
15°45° 60°120°可選 |
|
LED功率 LED Power |
9W |
|
LED結點溫升 LED Node Temperature |
＜65°C |
|
工作溫度 Working Temperature |
-40°C- +55°C |
|
防護等級 IP Grade |
IP68 |
|
外殼材質 Shell Material |
鋼化玻璃、304不銹鋼 |
|
電源連接線 Power Cables |
棕Brown 藍Blue 地線GND |
|

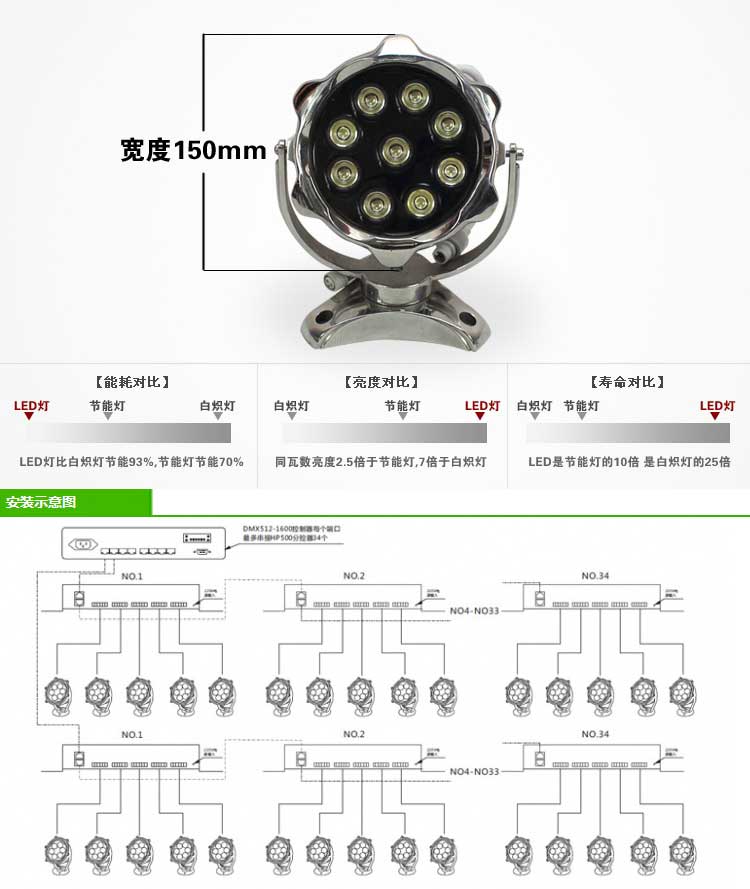

燈具尺寸 SIZE |
Ф150mm |
|
燈具照度 LM |
880LM |
|
產(chǎn)品認證 Product Certification |
CE |
